Our fiber optic cylinder is a high-performance communication solution engineered for harsh environments. Featuring ultra-low transmission loss and superior bending resistance, this compact design maximizes space efficiency and provides full immunity to electromagnetic interference. It is well suited for weight-sensitive applications like UAV communication, high-altitude platforms and underwater systems.
| Product Model | FO-0.25-14 |
|---|---|
| Optical Fiber Length | 60km |
| Fiber Type | G.657A2 |
| Sheath Material | KEVLAR/PVC/Resin/ink |
| Unit Weight | 80g/km |
| Wire Diameter | 0.25mm±0.01 |
| Operating Temperature | -40℃ ~ +85℃ |
| Fiber Optic Tension | 60N |

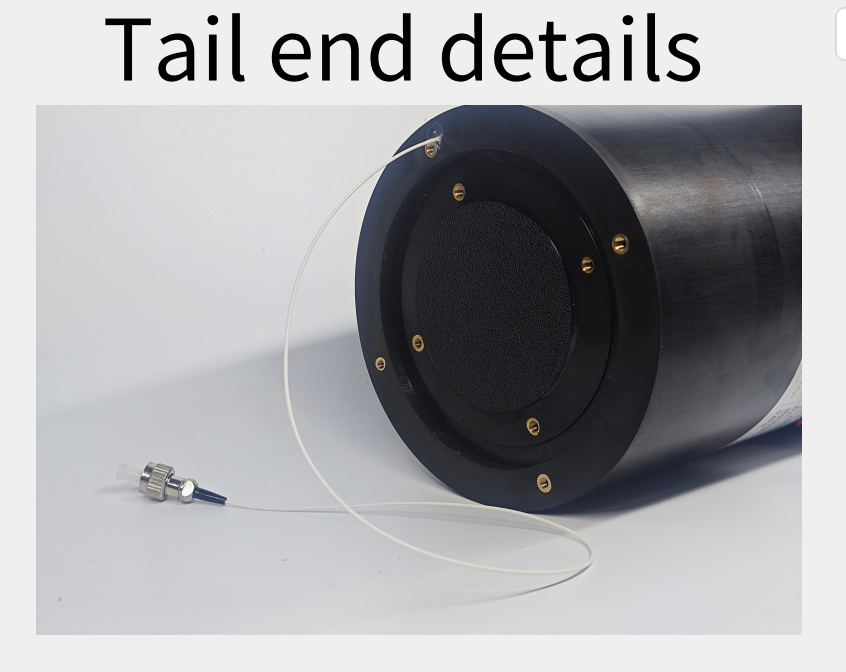

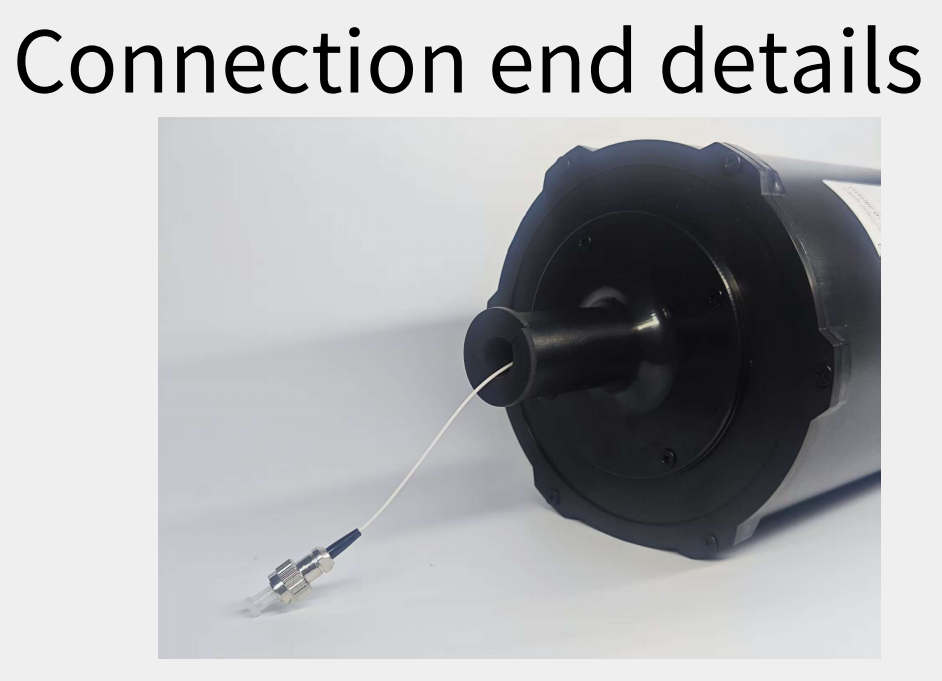

| Optical Interface | FC/FC |
| Insertion Loss | ≤0.3dB |
| Optical Fiber Attenuation Parameter | ||
|---|---|---|
| Optical Wavelength | 1310nm | 1550nm |
| Specification Value | ≤0.35dB/km | ≤0.25dB/km |
| Typical Value | 0.329dB/km | 0.185dB/km |
| Packaging Information | |
|---|---|
| Fiber Optic Cylinder | |
| Shell Material | ABS (Black) |
| Size | 156x362mm |
| Weight | 5.35kg |

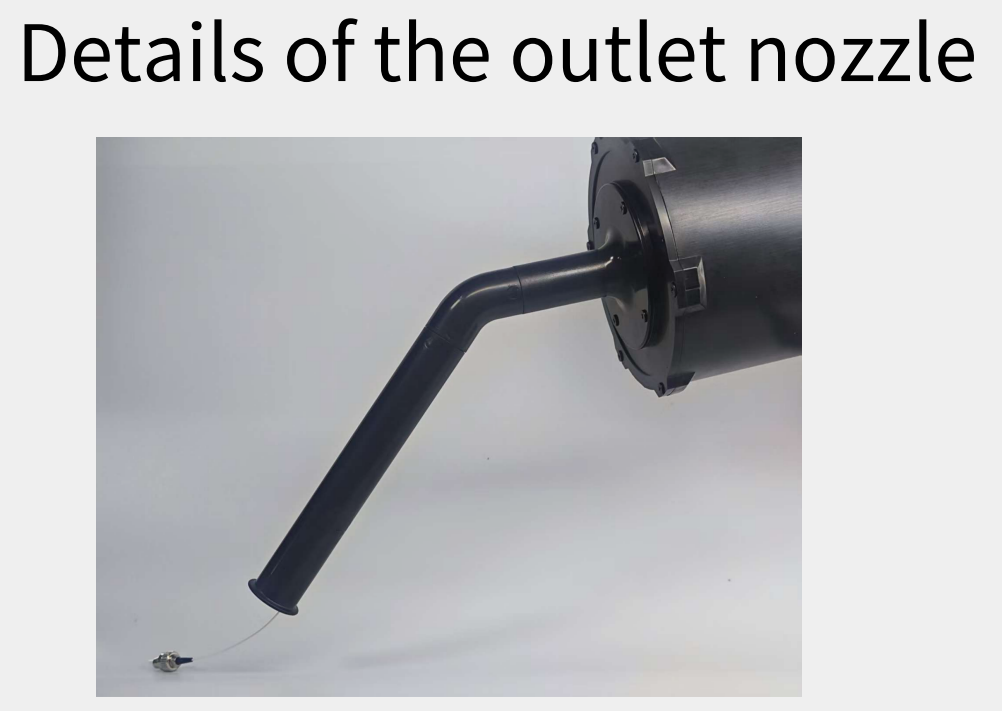

| Product Accessories | Straight Pipe/ Curved Pipe |
| Transport Package | |
| Single Unit | 610x220x187mm (0.5kg) |
| Four Pieces | 475x420x630mm (1.45kg) |
| Six Pieces | 630x475x630mm (1.65kg) |

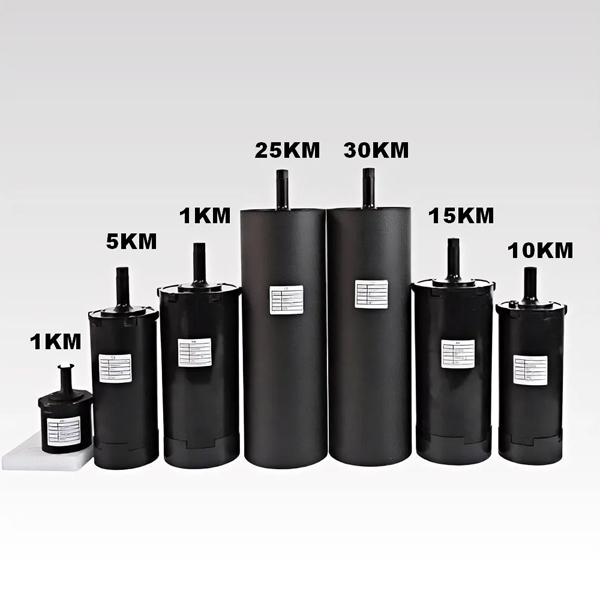

| Specification | 1KM | 2KM | 3KM | 5KM | 10KM |
|---|---|---|---|---|---|
| Product Model | FO-0.25-1 | FO-0.25-2 | FO-0.25-3 | FO-0.25-4 | FO-0.25-5 |
| Fiber Optic Dia. | 0.25mm | 0.25mm | 0.25mm | 0.25mm | 0.25mm |
| Shell Material | ABS | ABS | ABS | ABS | ABS |
| Shell Size | 75x205mm | 75x205mm | 75x205mm | 121x246mm | 121x246mm |
| Weight | 0.25kg | 0.3kg | 0.45kg | 0.64kg | 1.1kg |
| Specification | 15KM | 20KM | 25KM | 30KM | 35KM |
|---|---|---|---|---|---|
| Product Model | FO-0.25-6 | FO-0.25-7 | FO-0.25-8 | FO-0.25-9 | FO-0.25-10 |
| Fiber Optic Dia. | 0.25mm | 0.25mm | 0.25mm | 0.25mm | 0.25mm |
| Shell Material | ABS | ABS | ABS | ABS | ABS |
| Shell Size | 121x246mm | 147x276mm | 147x276mm | 147x276mm | 147x276mm |
| Weight | 1.5kg | 2.06kg | 2.55kg | 2.85kg | 3.3kg |
| Specification | 40KM | 45KM | 50KM | 60KM |
|---|---|---|---|---|
| Product Model | FO-0.25-11 | FO-0.25-12 | FO-0.25-13 | FO-0.25-14 |
| Fiber Optic Dia. | 0.25mm | 0.25mm | 0.25mm | 0.25mm |
| Shell Material | ABS | ABS | ABS | ABS |
| Shell Size | 147x276mm | 156x362mm | 156x362mm | 156x362mm |
| Weight | 3.8kg | 4.4kg | 4.85kg | 5.35kg |
