| Overall | |
|---|---|
| Max Transmission Range | 15 km (Unobstructed, free of interference) |
| Channels | 16 physical channels 16 communication channels |
| Datalink Compatible Flight Controllers | PX4 / Ardupilot Open-source Flight Controllers: SIYI N7, etc. Agriculture Flight Controllers: BOYING Paladin V2 JIYI K++ V2 / K3A Pro VK V7AG / V9AG |
| Video Stream Compatible Android GCS | SIYI Original App: SIYI FPV Open-source GCS: QGroundControl Mission Planner Agriculture GCS: BOYING Agriculture JIYI Agri-Assistant / IFLY VK Agriculture |
| Video Stream Compatible Windows GCS | Open-source GCS: QGroundControl Mission Planner (H264 only) |

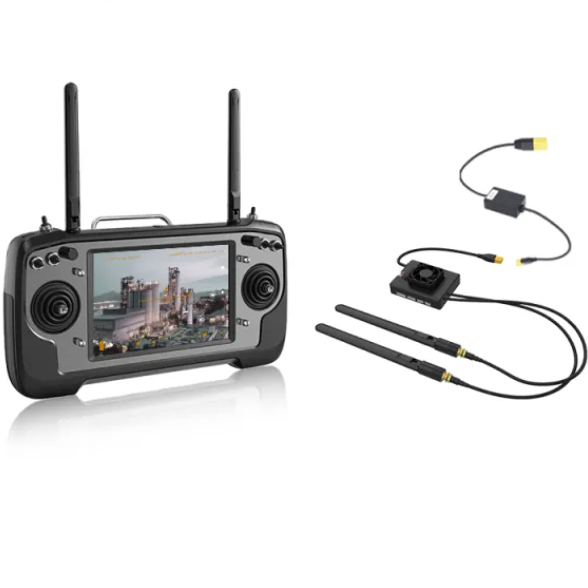

| Remote Controller (Ground Unit) | |
| Monitor | 7-inch High Definition and High Brightness LCD Touchscreen |
| System | Android 9.0 OS 4G RAM, 64G ROM |
| Battery Capacity & Type | 10200 mAh 7.4V 2S Li-ion 75.48 Wh |
| Fast Charging Protocol | PD 30W |
| Charging Time | 3.5 hours (PD 30W) |
| Battery Life | 10 hours |
| Antenna Gain | Omni Antenna: 5 dBi Long Range Antenna: 11 dBi Lollipop Antenna: 5 dBi (optional) |
| Interface & Ports | Video Output: Standard HDMI External Device (Mouse, USB Disk): USB-A Charging: Type-C Firmware Upgrade: Type-C File Transfer: Type-C / USB-A Mobile Network: SIM Card Slot External Storage: TF Card Slot / USB-A Communication Port: LAN (Ethernet) RC Signal Input / Output: Bottom Audio Port |
| Dimensions (Antenna Overlapped) | 308 x 148 x 72 mm |
| Weight (Antenna Overlapped) | 1440 g |
| Waterproof Level | IP4X |
| Working Temperature | -10℃ ~ 50℃ |
| Air Unit | |
| Signal Output | 16 channels of SBUS 5 channels of PWM |
| Interface & Ports | S.Bus RC Signal Output: SBUS (GH1.25 3-Pin) Datalink (to FC): UART (GH1.25 4-Pin) PWM Channel 1 to 5: PWM (GH1.25 6-Pin) Video Input / Network Communication: LAN (GH1.25 8-Pin) Firmware Upgrade: Type-C |
| Antenna Gain | Omni Antenna: 5 dBi Lollipop Antenna: 5 dBi (optional) |
| Working Voltage | HM30 Air Unit: 3S ~ 6S / 12.6 ~ 25.2 V 4S to 18S Power Module: 16.8 ~ 75.6 V |
| Power Consumption | HM30 Air Unit: - Average: 2.8 W - Summit: 12 W HM30 Air Unit + 4S to 18S Power Module: - Average: 3.2 W - Summit: 12 W |
| Dimensions (Antenna Excluded) | 70 x 55 x 16 mm (fan included) |
| Weight (Antenna Excluded) | HM30 Air Unit: 74 g HM30 Air Unit + 4S to 18S Power Module: 109 g |
| Working Temperature | -10℃ ~ 50℃ |
| Air Unit HDMI Input Converter (Optional, packed with MK32 / MK15 HDMI combo) | |
| Video Input | Micro HDMI |
| Video Output | Ethernet |
| Working Voltage | 12 V |
| Power Consumption | 3 W |
| Video Recording Resolution | 1080p (1920 × 1080) @ 30 fps 720p (1080 × 720) @ 30 fps |
| Video Storage Birate | 12 Mbps (H265 codec) |
| File Storage Format | FAT32 |
| Video Recording Format | H265 |
| Supported TF / SD Card Type | MicroSD Class10, Less than 32GB |
| Dimensions | 42*41*11 mm |
| Weight | 26 g |
| Working Temperature | -10℃ ~ 50℃ |
| R1M Recording FPV Camera (Optional, packed with both HM30 combos) | |
| Video Output Port | Ethernet |
| Image Sensor | 1/2.9 Inch, 2 MP |
| FOV | Diagonal: 90° Horizontal: 80° |
| Working Voltage | 12 V |
| Power Consumption | 2.5 W |
| Video Recording Resolution | 1080p (1920*1080) @ 30 fps 720p (1280*720) @ 30 fps |
| Recording Bitrate | 12 Mbps |
| Video Recording Format | MP4 |
| Supported TF / SD Card Type | MicroSD Class10 Less than 32GB |
| File Storage Format | FAT32 |
| Dimensions | 42 x 42 x 25 mm |
| Weight | 23 g |
| Working Temperature | -10℃ ~ 50℃ |
