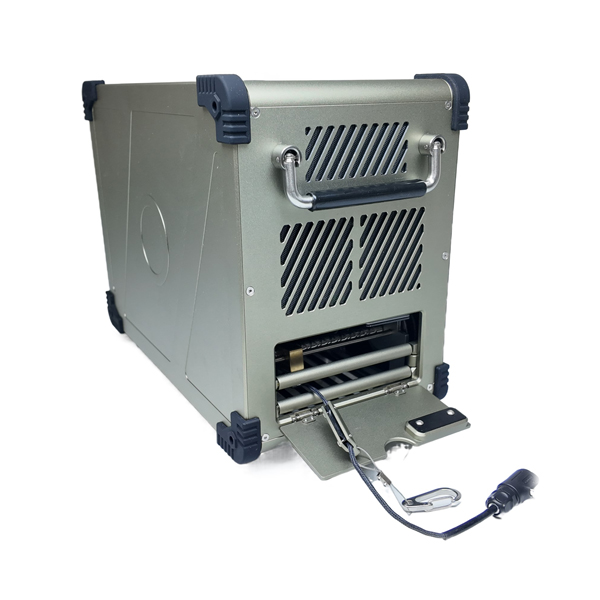

| Input Voltage | 220VAC±10%, compatible with municipal power, generators and mobile power supplies |
| Output Voltage | 850VDC |
| Rated Output Power | 3500W |
| Built-in Cable Length | ≤120m, Customized length available |
| Communication | Wired & wireless communication, remote display & control, optional optical fiber |
| Data Display | Touch screen supports tutorial videos, operation precautions, real-time operating data, fault logs, running status and setting menu |
| Control Modes | Cabinet physical buttons, mobile APP, PC and UAV remote controller |
| Automatic Cable Retraction | Self-adaptive tension adjustment, synchronous cable retraction following UAV takeoff & landing without manual intervention; backup power auto-retracts cable in case of external power failure |
| Continous Operation Supports | ≥ 24 hours non-stop UAV flight |
| Alarms & Reminders | Alarm triggers for input power loss, output power loss, over-limit cable payout, under-voltage, over-voltage, over-current, short circuit and over-temperature |
| Safety Protection | Remote contactless high-voltage on/off; UAV maintains normal flight & landing if external power fails, with automatic cable retraction |
| Weather Resistance | Stable operation under heavy rainfall of ≥50mm within 24 hours |
| Interface | Integrated cabinet with foldable double handles, anti-collision corners, input/output aviation plugs, optical fiber communication port and AC power switch; all electrical, signal interfaces and switches adopt waterproof standard parts |
| Dimension | D360 × W185 × H260mm |
| Weight | 9.3kg (excluding tether cable) |

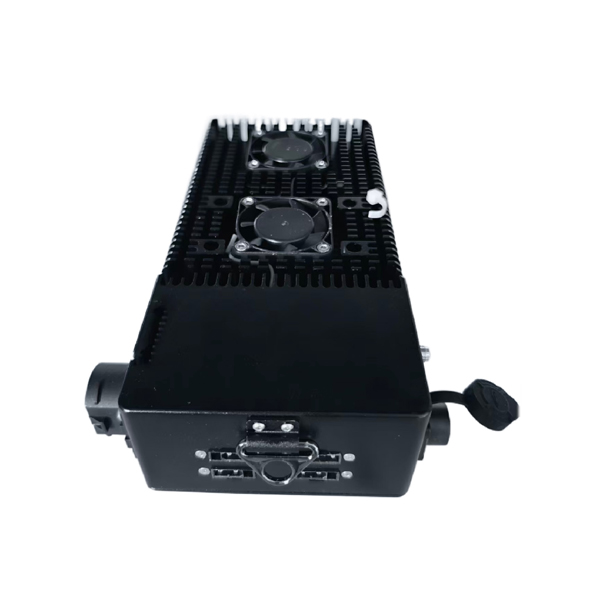

| Onboard Power Module (Air Terminal) |
| Input Voltage | Wide range 580～850VDC |
| Output Voltage | Constant regulated 51.9VDC±1% |
| Installation | Slider quick-mount structure |
| Rated Output Power | 3,000W |
| Weight | 890g (excluding external components & connectors) |
